Typical baseline performance metrics and configurable ranges for pouch cell assembly equipment:
- Stacking positional accuracy: ±0.1–0.2 mm
- Stacking efficiency: 0.3s/pcs
- Welding burr control: ≤ 30 μm
- Electrolyte filling accuracy: ±0.01 g
- Primary seal strength: configurable to pouch material spec; typical peel strength ≥ industry standard for Al-laminate pouches
- Vacuum level for secondary sealing: <100 mbar (adjustable per chemistry)
- Cycle time: from 2s/cell (pilot, small formats) to >1,200 cells/hour (mass configurations) depending on format and automation level
- Power: 220/380V, 50/60Hz; pneumatic & vacuum system specs per customer site
- Environmental: optional cleanroom compatibility (ISO Class 7–8)
- Control: PLC + HMI; MES/API interfaces optional
Application Scenarios
Pouch cell assembly equipment integrates stacking or winding, electrolyte filling, sealing, and welding into continuous production workflows for medium- to high-volume pouch cell manufacturing.
Why this equipment is used
This category is designed for production environments where process stability, throughput consistency, and repeatable quality are more critical than frequent parameter changes. Compared with pilot lines, pouch cell assembly equipment focuses on standardized workflows and long-term operational reliability.
Core Application Scenarios
Consumer Electronics Mass Production
High-speed assembly for smartphone, tablet, and laptop pouch cells, ensuring stable electrolyte filling, sealing integrity, and yield consistency during multi-shift operation.
→ Related equipment:

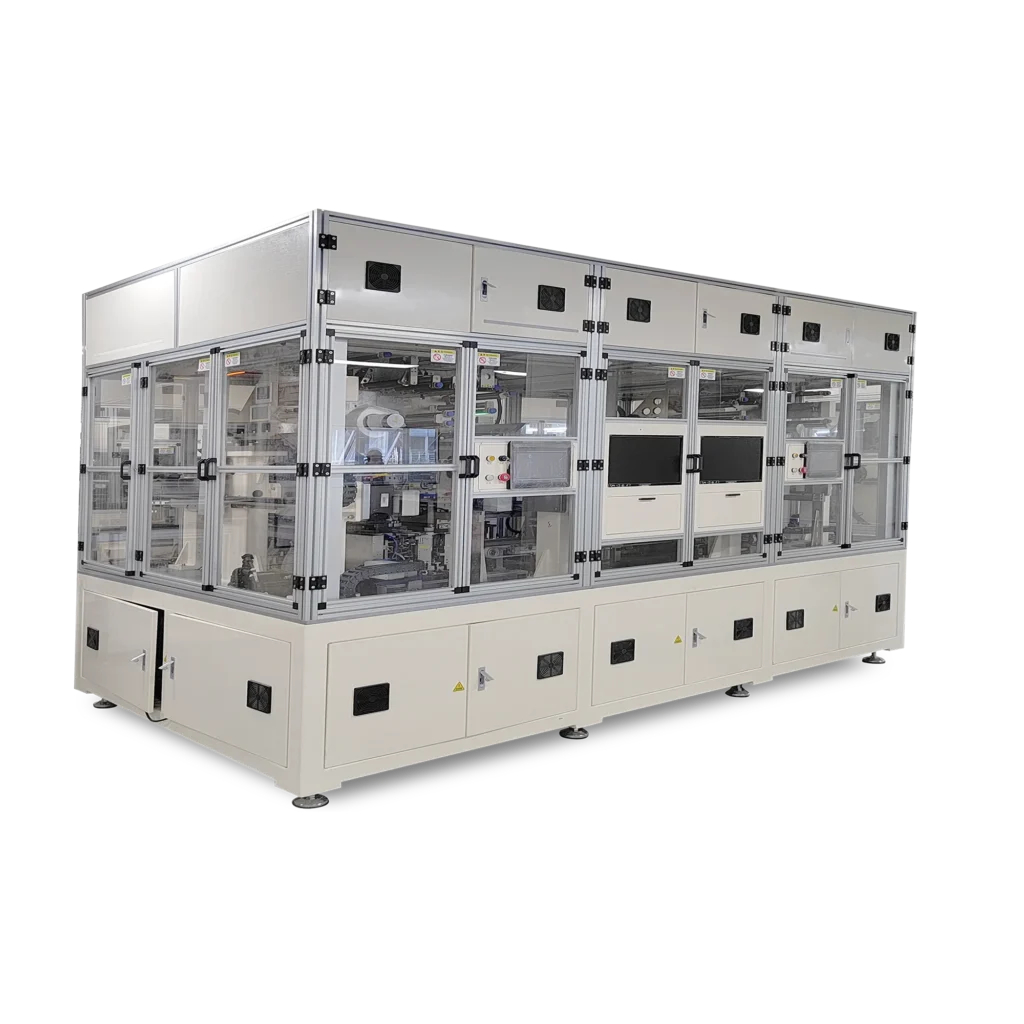

Stacking Machine for consumer electronics pouch cell assembly

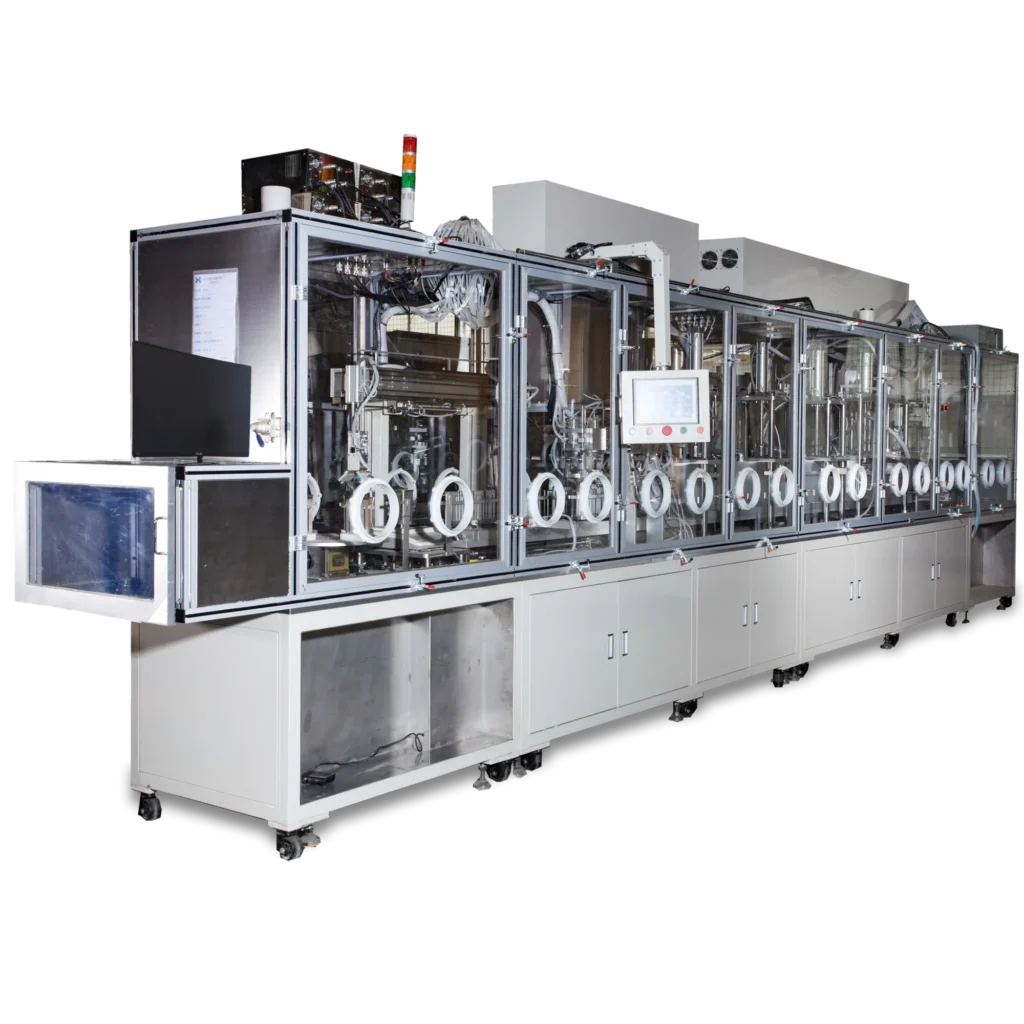

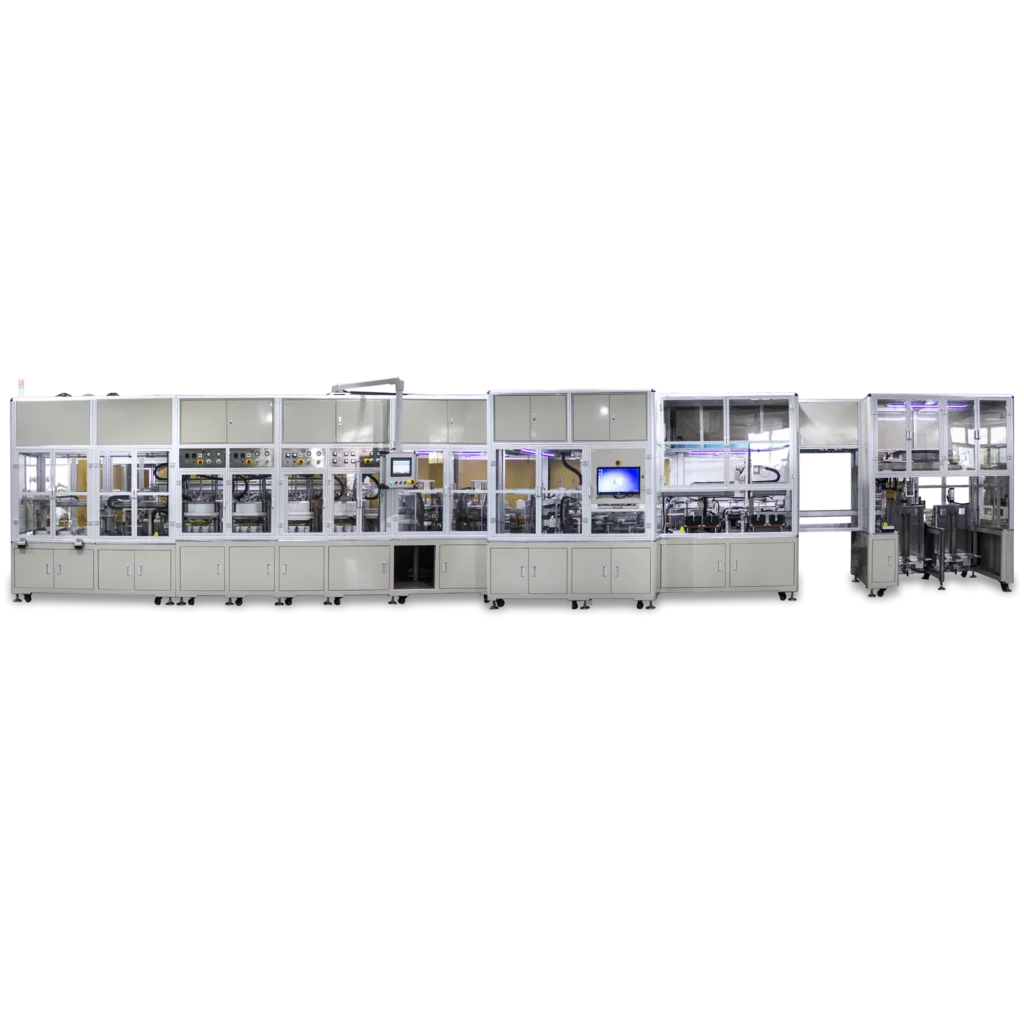

(also applicable: Automatic Electrolyte Filling Machine, Sealing Machine for Consumer Electronics)
Wearables & TWS Volume Manufacturing
Ultra-compact pouch cell assembly with gentle material handling and micron-level alignment, minimizing deformation risk in thin aluminum-laminated films used for earbuds and smart wearables.
→ Related equipment:
Laser Cutting & Stacking Machine for ultra-compact pouch cells

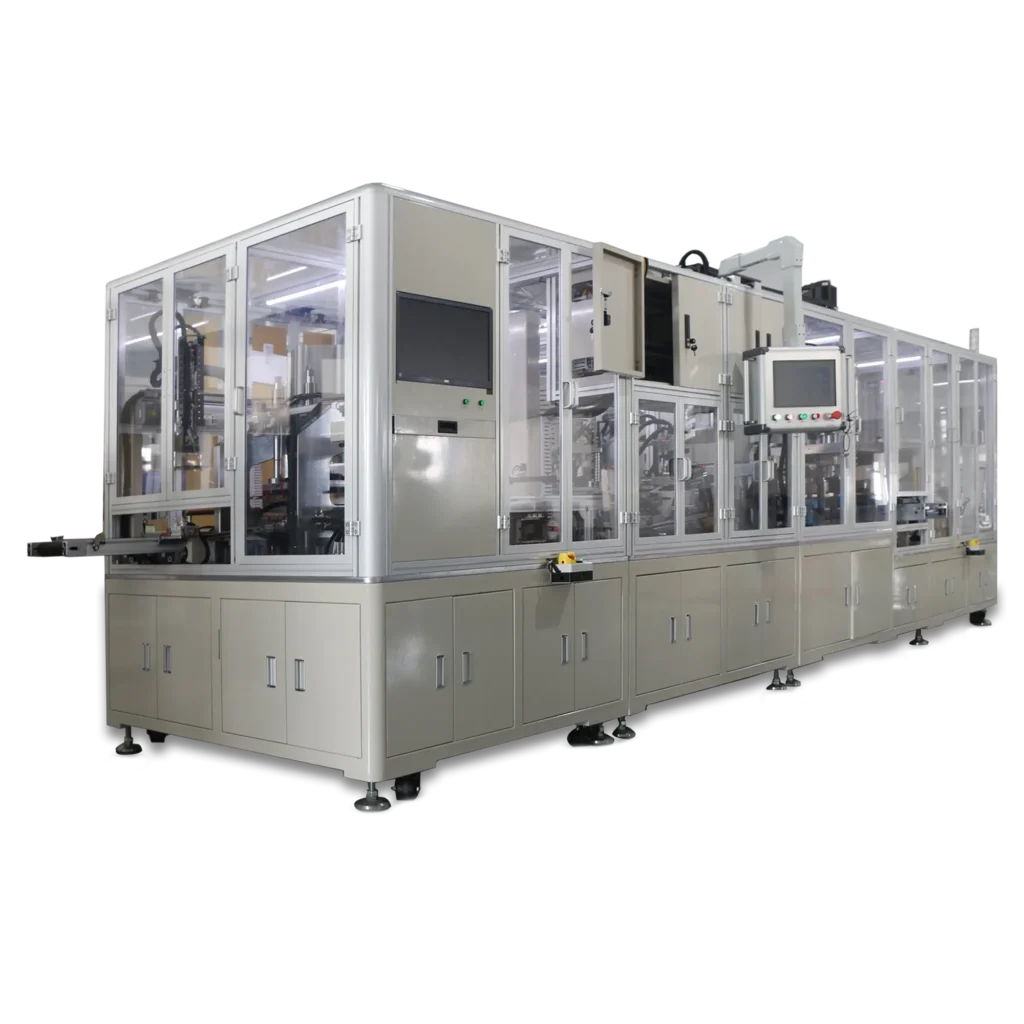

(also applicable: Vacuum Sealing Machine for Bluetooth Devices)
Medical & Safety-Critical Devices
Precision-controlled filling and sealing for medical and lifestyle batteries, emphasizing leak prevention, traceability, and repeatable process control.
→ Related equipment:

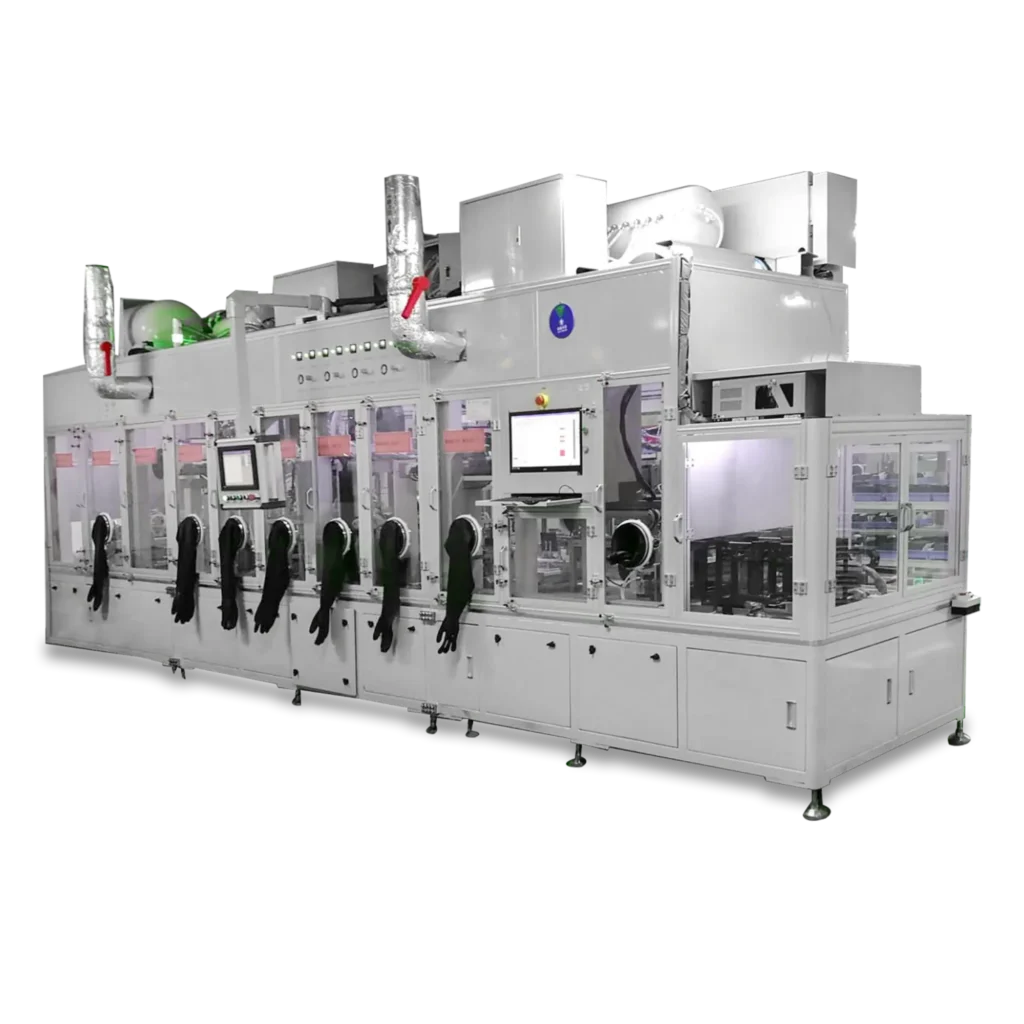

Automatic Electrolyte Filling Machine for safety-critical pouch cells
(also applicable: OCV Testing Machine)
UAV & Drone Battery Modules
Reliable vacuum degassing and secondary sealing for medium-capacity pouch cells, supporting stable discharge performance under vibration, altitude variation, and temperature fluctuation.
→ Related equipment:

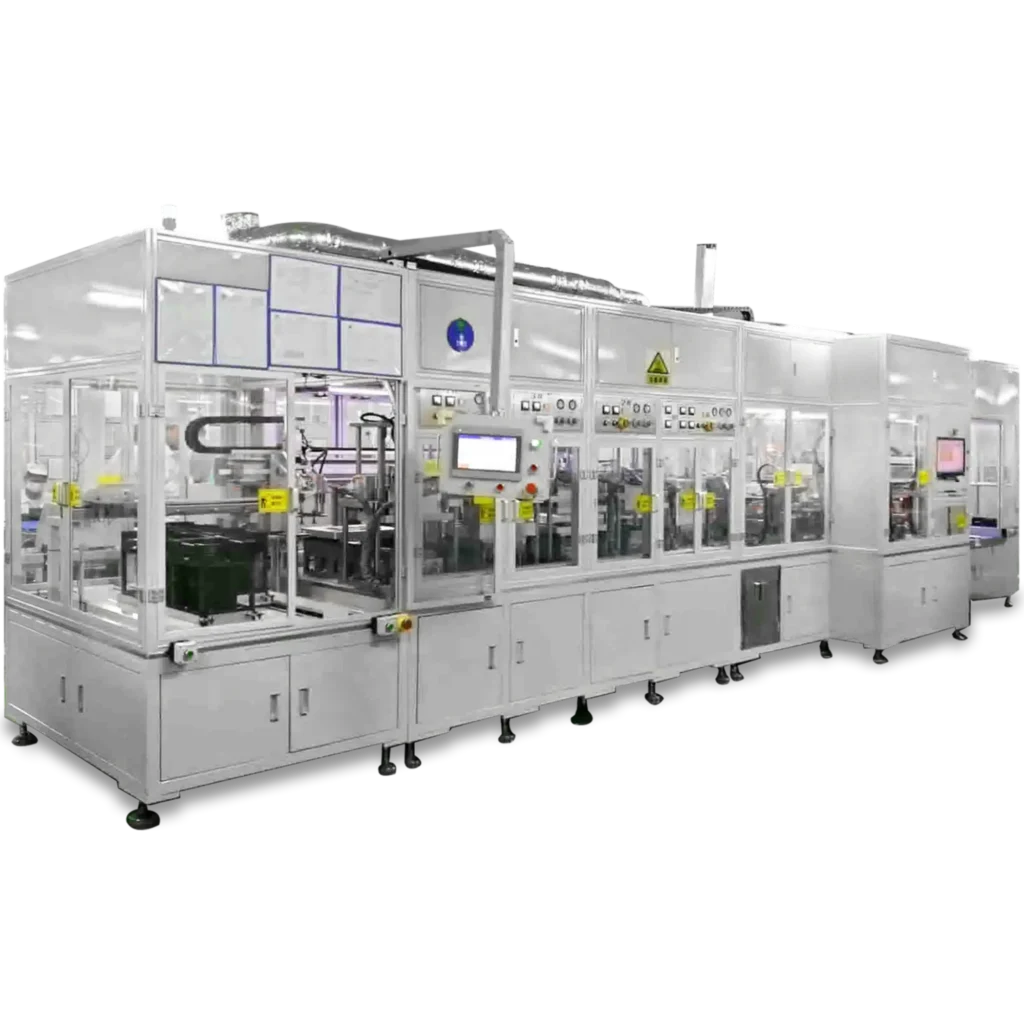

Automatic Vacuum Sealing Machine for drone pouch cells

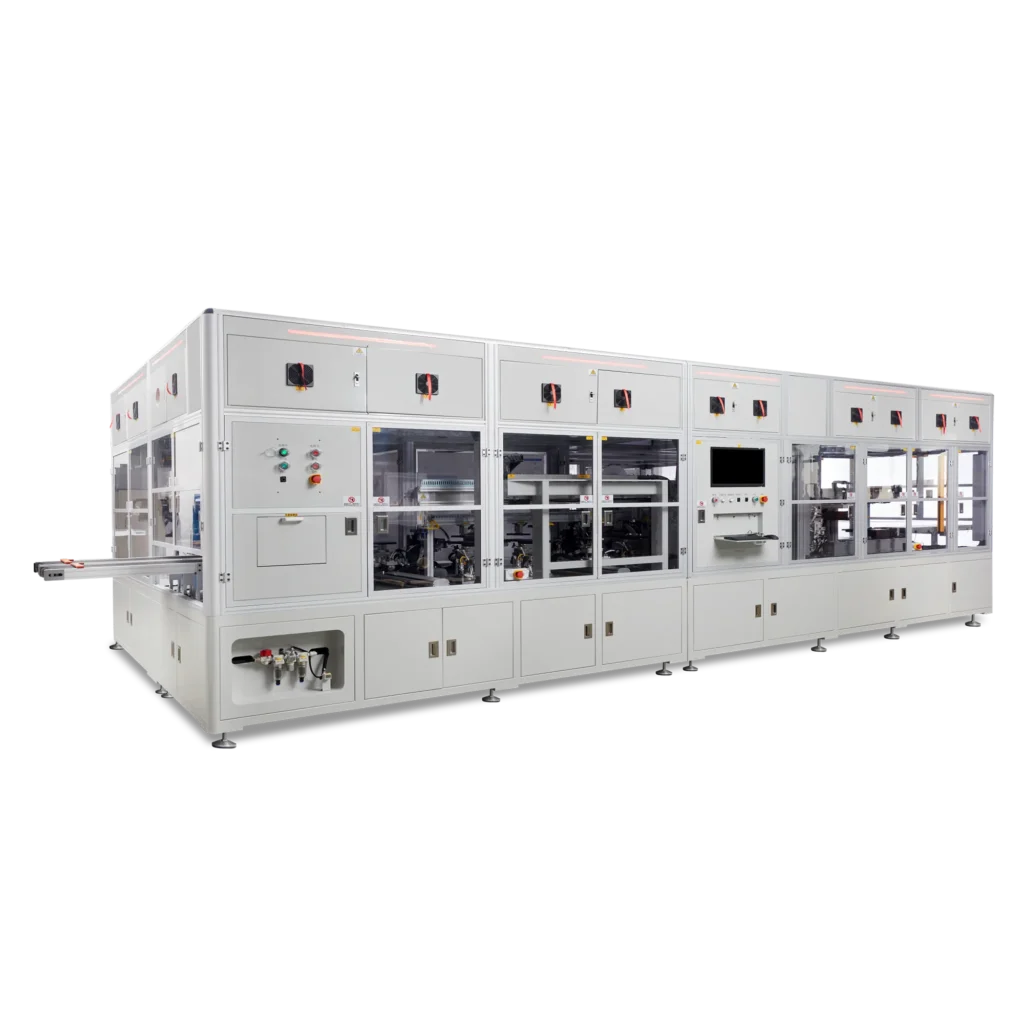

(also applicable: Automatic Welding Machine)
Light Electric Mobility (LEV)
Scalable pouch cell assembly solutions for e-scooters and light EVs, supporting continuous production with consistent output quality and downstream module integration.
→ Related equipment:

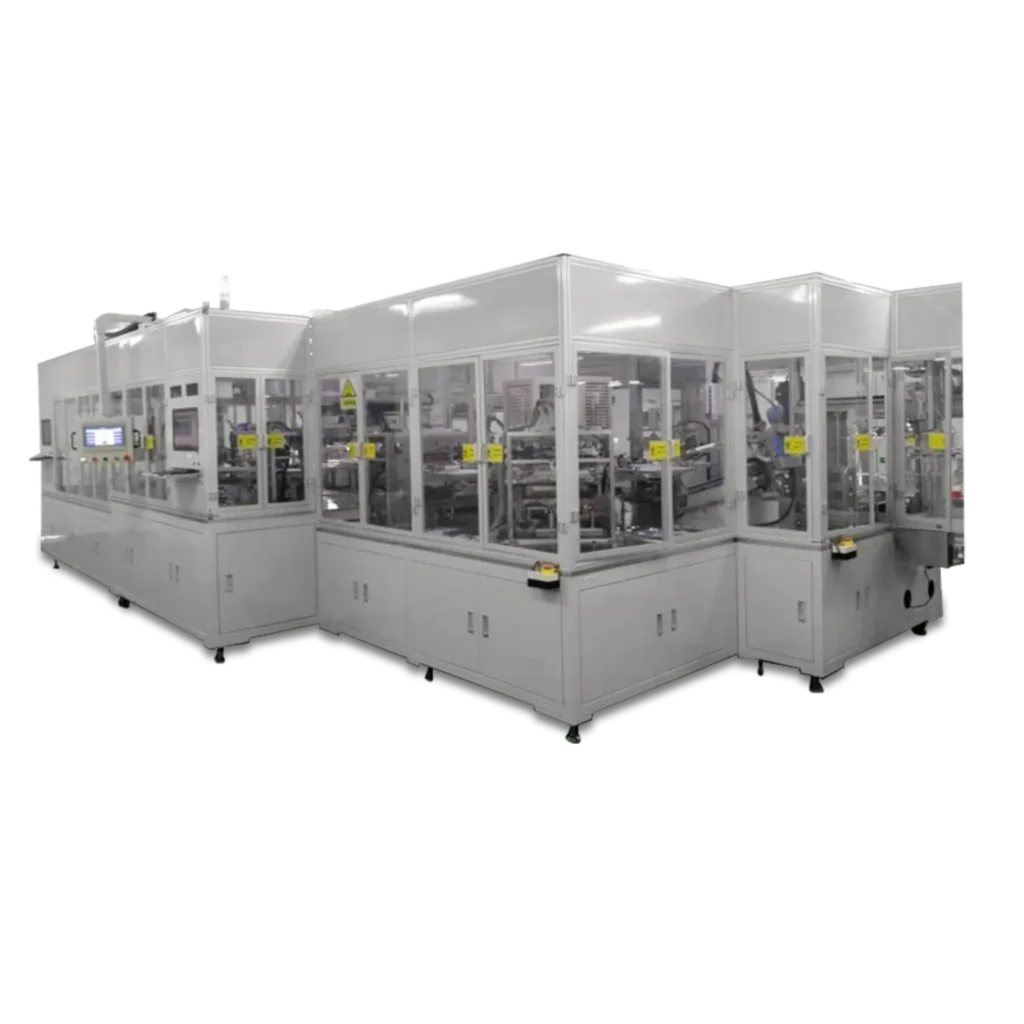

Automatic Sealing Machine for EV pouch cells
(also applicable: Automatic Sorting Machine)
- Soft-Package Protection Engineering: Multi-zone pressure/tension control minimizes creasing/intrusion during pouch handling, reducing assembly defect rates by ≥15%.
- Precision-Centric Assembly: ±0.1–0.2 mm stacking positional accuracy, ±0.01 g electrolyte filling precision, and ≥ industry-standard seal peel strength — ensuring batch consistency.
- High-Throughput Integration: One-pass workflow (stacking → welding → sealing → filling → vacuum sealing) reduces material transfers, supporting up to 1,200 cells/hour (mass configuration).
- Mass-Production Scalability: Modular design allows adding parallel stations or inline conveyors, easily scaling throughput without full line reconstruction.
- Fast Format Changeover: Quick-change tooling and fixture standardization enable format switching in ≤30 minutes, adapting to multi-SKU production needs.
- Inline QA Integration: Real-time vision inspection for weld/seal integrity, automated fill-level verification, and leak detection — eliminating off-line rework.
- Mass-Production Uptime: Designed for ≥95% continuous operation availability, with robust mechanical structures and wear-resistant components (e.g., seal tooling, welding heads).
- Batch Consistency QA: Inline vision inspection for weld/seal integrity, automated fill-level verification, and 100% leak detection — ensuring ≤0.5% defective rate in mass production.
- Material Handling Protection: Gentle transfer modules and multi-zone tension control prevent pouch creasing, tearing, or electrolyte contamination during assembly.
- Fault Recovery & Rejection: Automated error detection with staged rollback workflows and dedicated reject routing — minimizing production disruption for non-conforming cells.
- Cell Format: Exclusive to pouch cells (single-layer/multi-tab) — optimized for mass-production soft-package designs.
- Production Modes: Supports semi-automated and fully automated assembly lines, adapting to 1,200+ cells/hour throughput requirements.
- Line Integration: Seamless connection with upstream electrode/separator delivery systems and downstream formation, aging, and module assembly lines.
- MES/ERP Compatibility: Full traceability via barcode/QR integration, real-time data logging, and OPC/REST APIs for mass-production process monitoring.
- Material Flexibility: Compatible with diverse pouch laminates, tab materials, and electrolyte types — with quick retooling for different SKUs.
- Tooling Customization: Custom stack nests, tab fixtures, and pouch carriers for non-standard mass-production pouch sizes (e.g., large LEV modules or mini wearable cells).
- Filling & Sealing Options: Adjustable dosing pumps, manifold configurations, and inert-gas purging for sensitive electrolytes — optimized for high-throughput filling.
- Automation Upgrade: Scalable from manual loading to fully robotic cell handling and AGV integration, matching mass-production efficiency targets.
- Control System Tailoring: Customer-preferred PLC/servo brands, custom HMI language packs, and bespoke MES protocols for factory-wide system integration.
- Environmental Adaptations: Cleanroom (ISO Class 7–8) compatibility, temperature-controlled filling zones, and nitrogen purge systems for mass-production compliance.
Installation & Commissioning for Mass Production
Backed by our engineering leadership team’s experience at industry-leading companies, we deliver expert commissioning for high-volume pouch cell assembly lines. Our comprehensive setup includes stacking, welding, sealing, and filling process calibration, with particular focus on upstream/downstream automation synchronization to maximize your production efficiency and cell quality consistency.
Production-Focused Training
Training programs developed from real-world mass production experience:
- Efficient tooling changeover procedures for rapid SKU switching
- Metering pump calibration techniques for consistent electrolyte filling
- Seal tooling maintenance protocols and replacement procedures
- Advanced troubleshooting methodologies for high-volume production challenges including leakage detection and filling consistency
Warranty & Rapid Response Support
- 12-month warrantyon production-critical components: servo motors, PLC controllers, metering pumps, and seal tooling
- Lifetime technical supportbacked by our team’s deep industry expertise
- 24/7 online diagnosticsfor immediate production support
- Priority on-site servicewith engineers experienced in mass production environments
Spare Parts & Production Excellence
Comprehensive parts inventory: Seal tooling sets, metering pumps, welding heads, vacuum gaskets, conveyor belts
Exclusive production services:
- Pre-shipment validation runs to verify performance at your production scale
- Production line efficiency optimization consulting
- Preventive maintenance programs designed to minimize unplanned downtime
[→View complete after-sales service details ]
#Compliance-pouch-assembly
Certifications & Compliance for Pouch Cell Assembly Equipment
Pouch cell assembly equipment is delivered in accordance with applicable international safety and quality standards for battery manufacturing machinery. Certification packages such as CE, UL, ISO 9001, and RoHS are provided based on project scope and regional market requirements. Each system undergoes Factory Acceptance Testing (FAT) prior to shipment, with delivery-level compliance documentation prepared to support on-site acceptance and commissioning.
Assembly-Specific Compliance Support
- Cleanroom compatibility confirmation for electrolyte filling and sealing processes (ISO Class 7, where required)
- Heat-sealing integrity verification, including documented temperature and pressure consistency checks
- Electrolyte material-contact compatibility statements for wetted components
- Alignment with applicable production safety standards for lithium-ion pouch cell manufacturing (e.g. SJ/T 11798, project-dependent)
- FAT / SAT documentation packages, including BOMs, process records, and acceptance reports
- This compliance scope supports safe equipment deployment, documented process readiness, and regulatory alignment during pouch cell assembly equipment delivery.
