Dispenses metered micro-volume electrolyte into compact pouch cavities under controlled conditions to achieve uniform saturation.
Why this machine: Micro-cells have zero tolerance for overfilling. This system uses micro-dosing technology to ensure accurate fill weights without residual dripping.
Ideal User: TWS and medical device battery manufacturers.
When to choose: When electrolyte volume tolerance is extremely narrow and even micro-level overfill or underfill directly affects internal pressure, cycle life, or safety performance.
Related Equipment: Sealing machine (Bluetooth) · Vacuum sealing machine · OCV tester
These features govern micro-volume electrolyte dosing under tightly managed injection conditions.

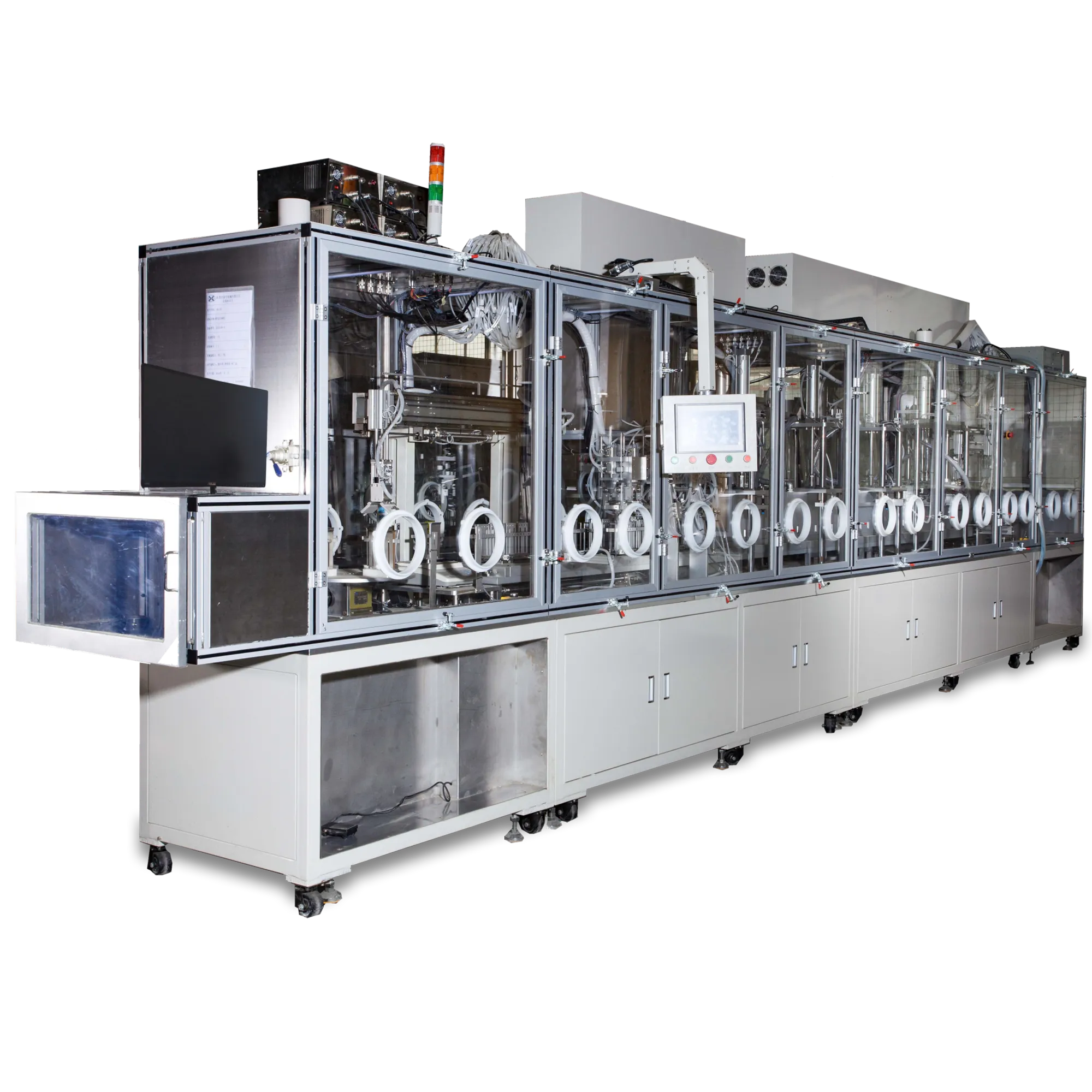

This machine is designed for electrolyte filling of small-format battery cells.
Its core functions include:
| Cell spec. (L) | 20-60mm |
| Cell spec. (W) | 8-30mm |
| Cell spec. (T) | 2.5-10mm |
| Production efficiency | 20ppm |
| Electrolyte filling accuracy | ±0.05g |
| First-pass yield (FPY) | ≥99.5% |
| Equipment utilization rate | ≥95% |
| Power | 20KW |
| Weight | 5T |
| Equipment dimension (reference) | 6000×2500×2600mm (LxWxH) |

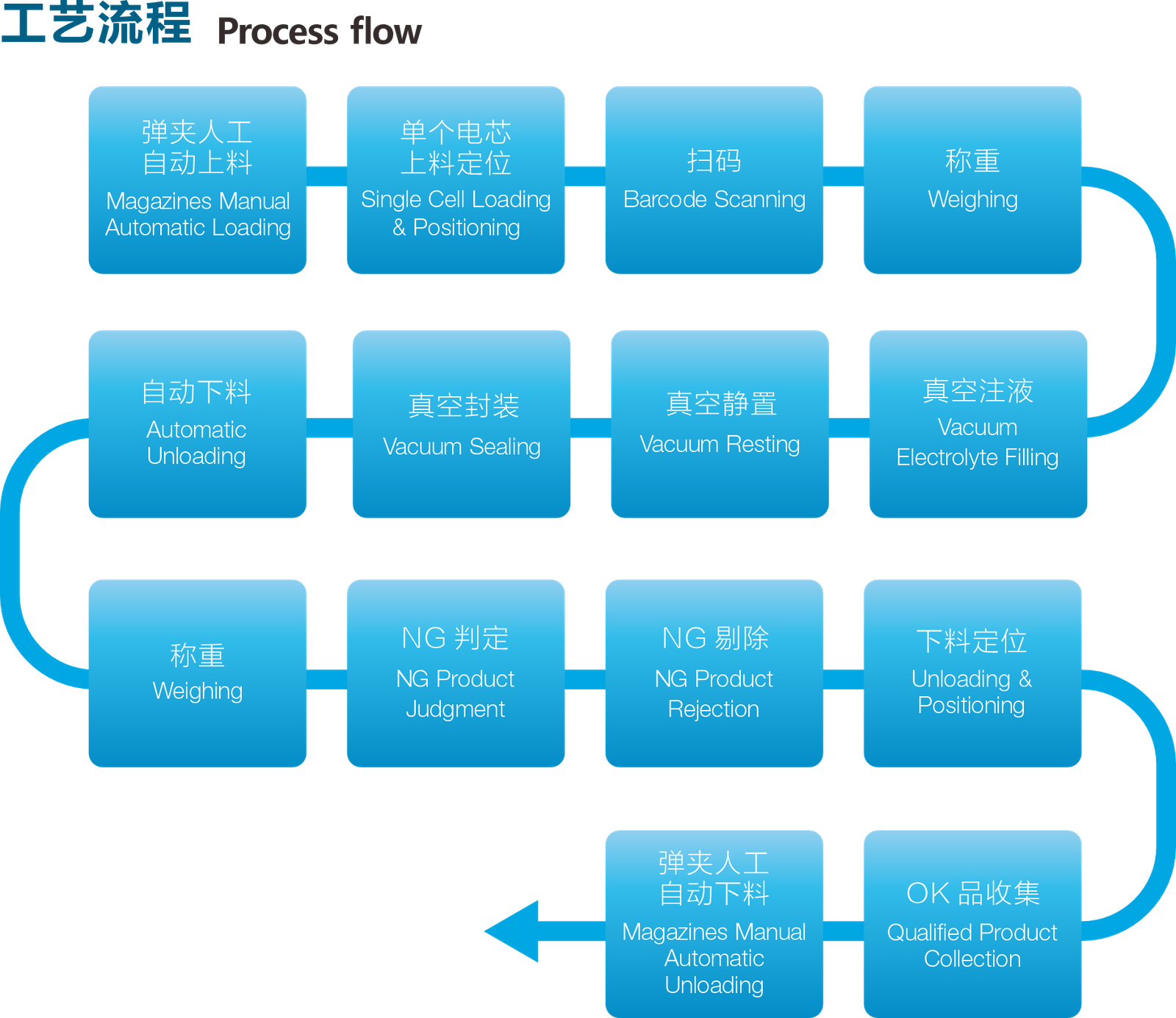

This section identifies electrolyte injection as a key step in miniature pouch cell assembly.
Measured electrolyte volumes are introduced into pre-sealed shells prior to vacuum sealing.
Packaging focuses on fluid handling and sealing interfaces.
Electrolyte injection is executed by the patented rotary-table filling equipment for pouch-type Bluetooth lithium batteries, which indexes cells through sequential filling positions.
The rotary configuration enables controlled small-volume dosing while maintaining continuous production rhythm suited to miniature pouch formats.
