Functions

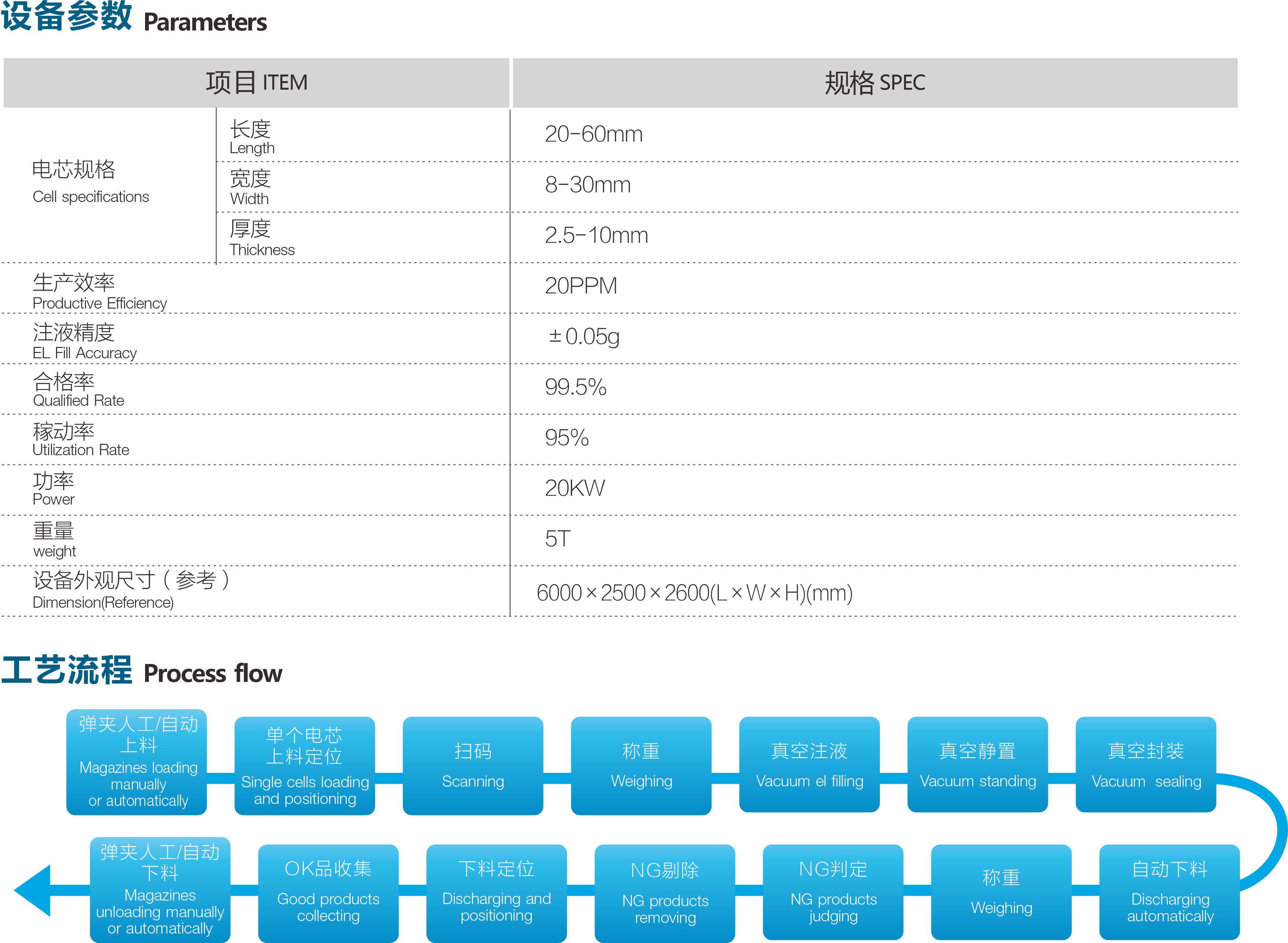

This is a fuly-automated electrolyte filing lne for lithium-on pouch cells used in Bluetoothdevices.its main functions incude fully-automatic loading and unloading, code scanning.weighing, electrolyte flling, standing, sealing, weighing after electralyte injection, NG sorting, dataupload to the server, etc.

Characteristics

- A batch of cells come in the material box, and it uses single cel EL filing and sealing techniqueto make;

- It is turntable or straight mechanism, magazine auto/manual loading or unloading, and theydock a dry room;

- There are 1 in 4 each cavity, and every cavity are divided into two independent small cavities.moreover, cells do not influence each other;

- The parallelism of cap is about+/-0.015. and it is flat of AL-plastic filims which is without folds.air bulbs and does not degum;

- There are two series of independent EL filing system so that EL flling and liquid tank refilingare done at the same time to improve production rate;

-It classifes NG and remove them;

- it uses cupless vacuum filing and improve filing accuracy, decrease wal hanging and improvefiling accuracy and clean convenientily;

- The sealing cavity can be opened by turning so as to debug sealing head and clean;

- EL Flling Accuracy:+1%;

-. it possesses an lndustrial personal computer, which uploads data to MES system in order to readand reserve it.
